Product Description

Steel Wire Braided Hydraulic Hose

Braided hydraulic hose adopts high-strength ultra-flexible steel wire as the reinforcement layer, the hose body is lighter and softer, and its outer rubber layer generally uses abrasion-resistant and weather-resistant synthetic rubber, which has a longer service life to fully meet the needs of high-end hose users, such as coal mining machinery and equipment manufacturing.

Product Description

Name	NBR Rubber Hose
Tube	Black, Oil Resistant, High Temperature Nitrile (NBR)
Reinforcement	One High Tensile Steel Wire Braid Over One Polyester Braid.
Cover	Abrasion And Ozone Resistant Synthetic Rubber
Temperature Range	-40°C To 100°C / -40°F To +212°F (max 120°C / 248°F Intermittent)
Note	Various Covers Available

Payment & Shipping Terms

Minimum Order Quantity	7-15 days
Payment Terms	L/C, T/T, Paypal
Supply Ability	165,600 Meters /Month

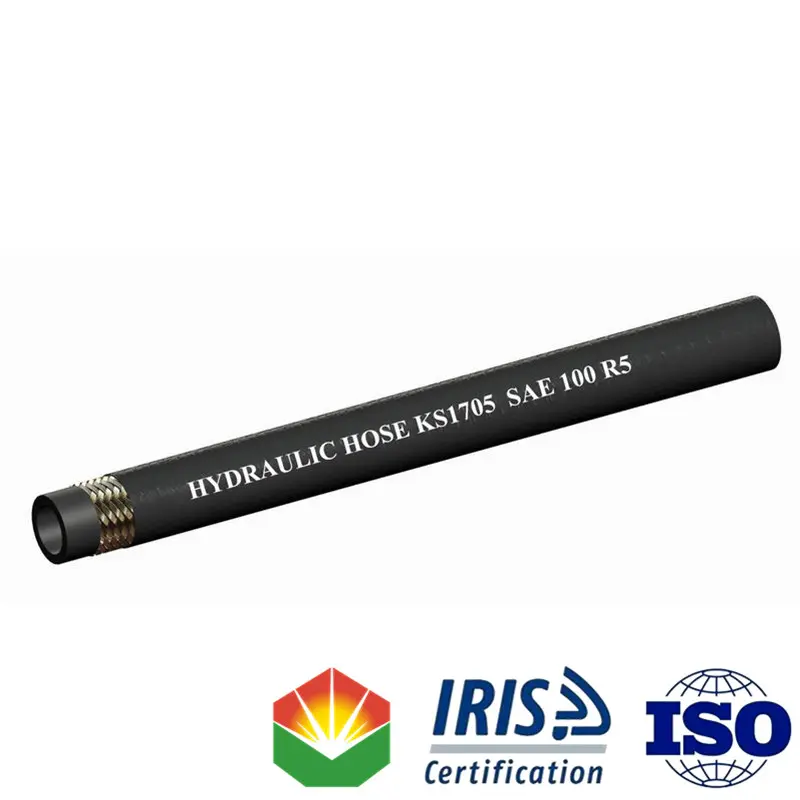

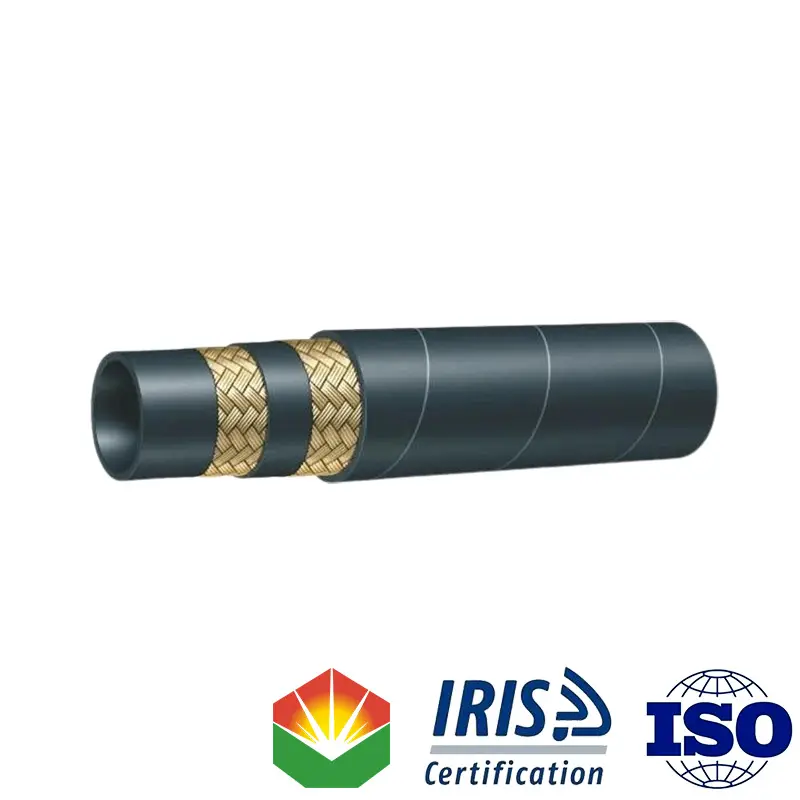

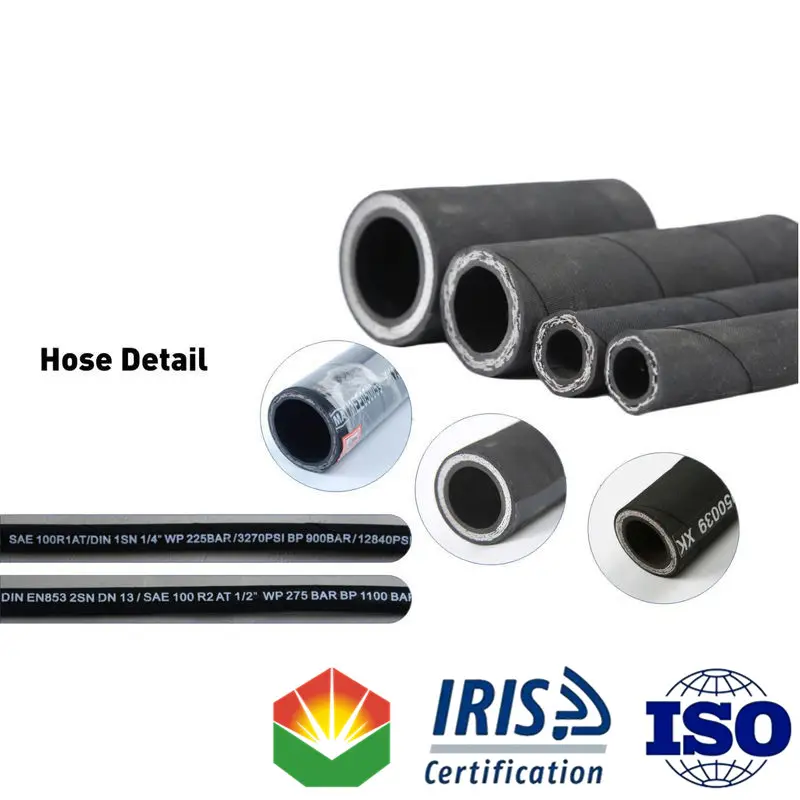

Hose Construction

• SAE 100R5: Wire Braid Textile Cover

• TUBE: Oil-resistant synthetic rubber inner layer + wire braid + Textile Cover

• Reinforcement: One high tensile steel wire braid over one polyester braid. Friction layers included to improve adhesion.

• Cover: Abrasion and ozone resistant synthetic rubber

Application

Petroleum-based hydraulic fluids and water-based hydraulic fluids. Suitable for high-demand industrial environments.

Technical Parameters

TYPE	Dash size		I.D (mm)		O.D (mm)		W.P	B.P	Min B.R	W.T
TYPE	mm	Inch	Min	Max	Min	Max	Mpa	Mpa	mm	Kg/m
KS1705-03	5	3/16	4.8	5.5	12.7	13.7	21	84	75	0.24
KS1705-04	6.3	1/4	6.4	7.2	14.3	15.3	21	84	85	0.28
KS1705-05	8	5/16	7.9	8.7	16.7	17.6	15.7	63	100	0.35
KS1705-06	11	13/32	10.3	11.1	18.9	20.0	14	56	115	0.38
KS1705-08	12.5	1/2	12.7	13.7	22.8	24.0	12.2	49	140	0.51
KS1705-10	16	5/8	15.9	17.0	26.8	28.0	10.5	42	165	0.68
KS1705-16	22	7/8	22.2	23.3	30.6	32.2	5.6	22.4	185	0.70
KS1705-20	29	1-3/8	28.6	29.8	37.3	38.9	4.3	17.5	230	0.80
KS1705-24	35	1-1/4	34.9	36.1	43.7	45.2	3.5	14	265	0.93
KS1705-32	46	1-13/16	46.0	47.2	55.2	57.6	2.4	9.8	335	1.32
KS1705-40	60	2-3/8	603.0	61.9	71.8	74.2	2.4	9.8	610	2.96
KS1705-48	76	3	76.2	77.8	89.3	91.7	1.4	5.6	840	4.10

Frequently Asked Questions

1. What materials are used in the construction of this hydraulic hose?

The hose features an oil-resistant Nitrile (NBR) inner tube, reinforced with high-tensile steel wire braid over a polyester braid, and finished with an abrasion and ozone-resistant synthetic rubber cover.

2. What is the working temperature range?

The standard temperature range is -40°C to 100°C (-40°F to +212°F), with intermittent capabilities up to 120°C (248°F).

3. What types of fluids is this hose compatible with?

It is specifically designed for petroleum-based hydraulic fluids and water-based hydraulic fluids.

4. What are the key advantages of the steel wire reinforcement?

The high-strength ultra-flexible steel wire makes the hose lighter and softer while providing superior pressure resistance and a longer service life.

5. Can this hose be used in mining operations?

Yes, it is fully qualified for high-end applications including coal mining machinery and equipment manufacturing.

6. What is the typical lead time for orders?

Our standard minimum order lead time is approximately 7 to 15 days, depending on specific requirements.
