| Material | PTFE NBR |
| Pressure (max) Bar | 300 |
| Temperature (max) °C | -30/+105 |
| Sliding Speed (max) M/s | 5 |
| Minimum Order Quantity | 100 |
| Packaging Details | Customizable packaging |
| Delivery Time | 15 Days |
| Payment Terms | L/C, T/T |
| Supply Ability | 100,000 pcs / month |

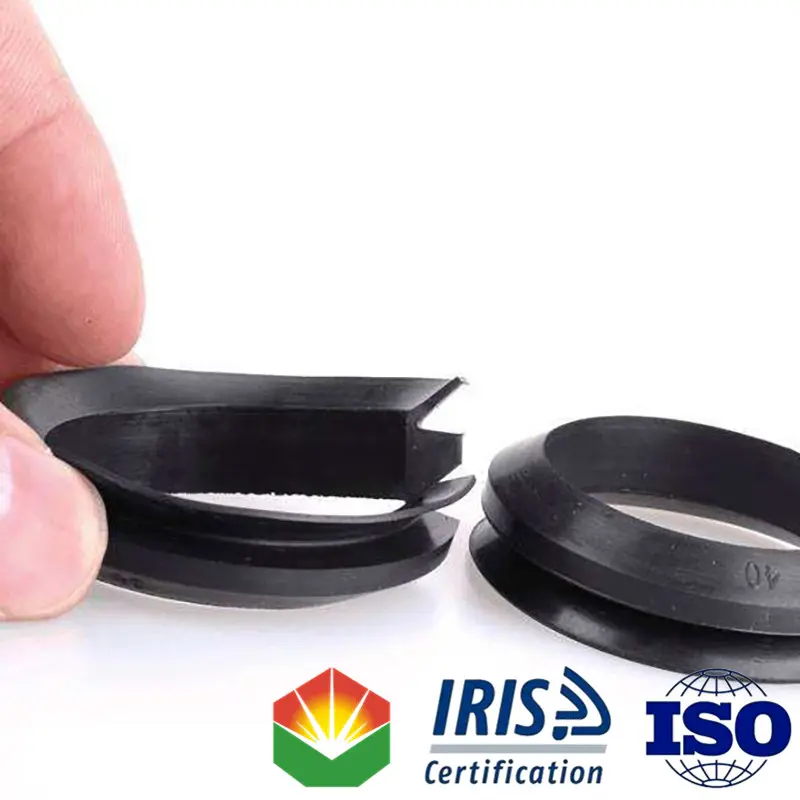

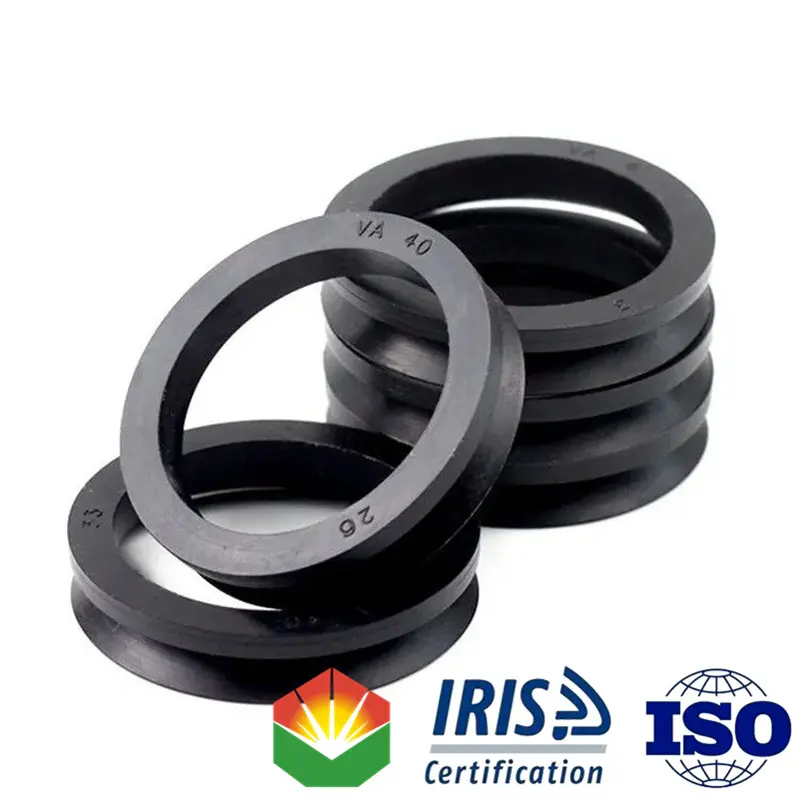

Type E V-rings feature a straight back that serves as an unpressurized axial rod seal with a very small mounting length and is fixed to the shaft. The flexible lip seals an opposing face at a right angle to the axis preventing dirt, dust and splashes from entering the construction. The V-Ring V-E is designed for heavy use and is applied in situations where larger axial tolerances are required.
Commonly used as side seals and in rolling mills to exclude dirt and water, the V-Ring V-E styles can be stretched up to 2.5 times their original diameter. This profile is available for axles ranging from Ø450 to Ø2010 mm.

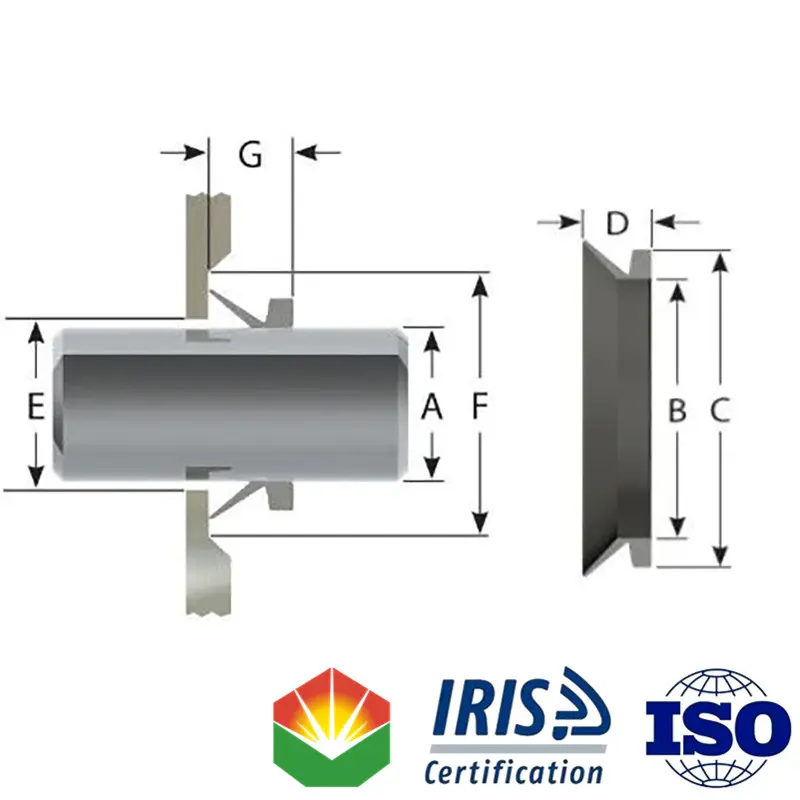

| Part Number | Shaft Diameter (A) | Seal I.D. (B) | Part Number | Shaft Diameter (A) | Seal I.D. (B) |
|---|---|---|---|---|---|
| VE 450 | 450.00-455.00 | 439.00 | VE 670 | 670.00-680.00 | 650.00 |
| VE 455 | 455.00-460.00 | 444.00 | VE 680 | 680.00-690.00 | 660.00 |
| VE 460 | 460.00-465.00 | 448.00 | VE 690 | 690.00-700.00 | 670.00 |
| VE 465 | 465.00-470.00 | 453.00 | VE 700 | 700.00-710.00 | 680.00 |
| VE 470 | 470.00-475.00 | 458.00 | VE 710 | 710.00-720.00 | 689.00 |
| VE 500 | 500.00-505.00 | 488.00 | VE 800 | 792.00-801.00 | 768.00 |
| VE 600 | 600.00-610.00 | 582.00 | VE 1000 | 999.00-1010.00 | 963.00 |
| VE 650 | 650.00-660.00 | 631.00 | VE 2000 | 1955.00-2010.00 | 1844.00 |
